Balance Quality Grades under ISO 21940-11: How to Choose the Right Tolerance for Your Equipment

In shortA balance quality grade G equals the permissible specific unbalance times angular speed in mm/s: crushers G16, fans and pumps G6.3, gas and steam turbines G2.5, spindles G1.0 or G0.4. The tolerance follows from e_per = (G × 9549) / n, then U_per = e_per × M.

When this applies

  • Setting an objective balancing acceptance criterion
  • Choosing an economically justified accuracy grade
  • Calculating permissible residual unbalance for a rotor

When it doesn’t

  • Don't demand stricter G grades than needed
  • G grade is residual unbalance, not casing vibration
  • Covers rigid-behaviour rotors, not vibration limits alone

The quality of balancing should be assessed not subjectively ("the vibration has gone down") but against objective, measurable criteria. International standards set out clear requirements for the permissible residual unbalance after balancing.

The key document is ISO 21940-11 (formerly ISO 1940-1:2003), "Mechanical vibration — Rotor balancing — Procedures and tolerances for rotors with rigid behaviour".

Why standards are needed:

  • They turn a subjective judgement into an objective, measurable criterion
  • They serve as the basis for the customer's acceptance of the work
  • They strike the balance between technical necessity and economic sense
  • They protect both the contractor and the customer in the event of a dispute

What a G grade is, in plain language

The balance quality grade (denoted by the letter G) defines the permissible residual unbalance after balancing. The lower the G number, the stricter the balancing accuracy requirement.

Physical meaning: the G number equals the orbital velocity of the rotor's centre of mass at its service speed — the product of the permissible specific unbalance and the angular speed (eper × Ω), expressed in mm/s. For example, grade G6.3 corresponds to 6.3 mm/s.

Important: this is a property of the residual unbalance, not the casing or bearing-housing vibration velocity that is measured on a running machine to ISO 20816-3. The two are related but are not the same number.

An important principle: each type of equipment has its own recommended balance quality grade, which stays constant regardless of the rotational speed or the mass of the rotor. For example:

  • Crushers → always grade G16
  • Fans and pumps → always G6.3
  • Gas and steam turbines → G2.5 (water turbines → G6.3)
  • Spindles → always G1.0 or G0.4
Why it is not worth demanding excessive accuracy: balancing to grade G1.0 when G6.3 is sufficient considerably increases the cost and time of the work without bringing any practical benefit. The standard helps you find a sensible balance between quality and cost.

A table of G balance quality grades for different equipment

Table: G grade, Grade magnitude eper·Ω (mm/s), Type of equipment, Rotor examples
G grade Grade magnitude eper·Ω (mm/s) Type of equipment Rotor examples
G4000 4000 Very coarse balancing Crankshaft drives of large slow marine diesel engines (piston speed below 9 m/s), inherently unbalanced
G16 16 Coarse balancing Crushers, agricultural-machinery shafts, drive (cardan) shafts
G6.3 6.3 Standard industrial quality Pump rotors, fan impellers, centrifuges and separators, turbochargers, water turbines, gears, machine tools, electric-motor armatures, process-equipment components
G2.5 2.5 Higher quality Gas- and steam-turbine rotors, compressors, machine-tool drives, electric motors above 950 rpm, textile machines
G1.0 1.0 Precision balancing Grinding-machine drives, audio and video drives
G0.4 0.4 Ultra-precision balancing Precision grinding-machine spindles, gyroscopes

← See also the section on balance quality grades in the complete guide

How to calculate the permissible residual unbalance

ISO 21940-11 lets you calculate a specific value for the permissible residual unbalance, which serves as the target figure during balancing.

The calculation is done in two stages:

Stage 1: Determining the permissible specific unbalance (eper)

Formula:

eper = (G × 9549) / n

Where:

  • G — the balance quality grade (for example, 6.3)
  • n — the working rotational speed, rpm
  • eper — the permissible specific unbalance, μm (or g·mm/kg)

Stage 2: Calculating the permissible residual unbalance (Uper)

Formula:

Uper = eper × M

Where:

  • M — the mass of the rotor, kg
  • Uper — the permissible residual unbalance, g·mm
The balancing tolerance calculator in the Balanset-1A software

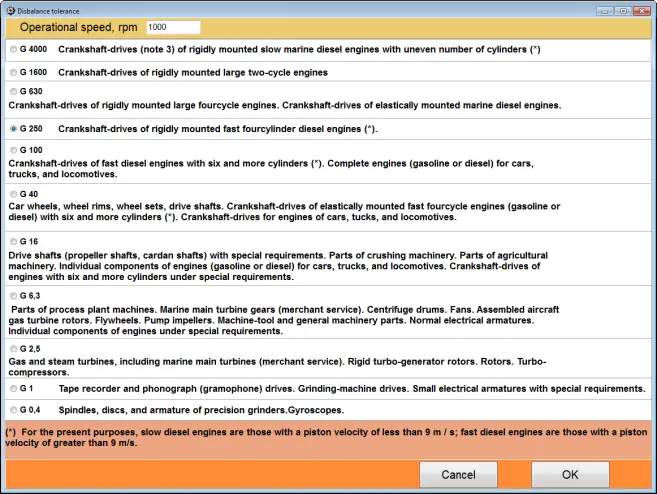

Fig. 1. The balancing tolerance calculation window in the Balanset-1A software: automatic calculation to ISO 1940-1

Balancing with verification against the standards

We carry out balancing with the tolerance calculated to ISO 21940-11 and issue a certificate of conformity

Order the service

Worked examples

Example 1: an industrial fan

Input data:

  • Mass of the rotor (impeller + shaft): M = 150 kg
  • Working speed: n = 1500 rpm
  • Balance quality grade: G = 6.3 (standard for fans)

Calculation:

  1. eper = (6.3 × 9549) / 1500 = 40.1 μm (g·mm/kg)
  2. Uper = 40.1 × 150 = 6015 g·mm

Conclusion: after balancing, the residual unbalance must not exceed 6015 g·mm (or ~6000 g·mm rounded). For two-plane balancing the tolerance is split evenly: each plane gets Uper/2.

Example 2: a 30 kW electric-motor rotor

Input data:

  • Mass of the rotor: M = 25 kg
  • Working speed: n = 3000 rpm
  • Balance quality grade: G = 2.5 (higher quality)

Calculation:

  1. eper = (2.5 × 9549) / 3000 = 7.96 μm
  2. Uper = 7.96 × 25 = 199 g·mm

Conclusion: the motor requires more accurate balancing (grade G2.5 rather than G6.3) because it runs at high speed.

Example 3: a grinding-machine spindle

Input data:

  • Mass of the spindle with its tool: M = 5 kg
  • Working speed: n = 6000 rpm
  • Balance quality grade: G = 1.0 (precision balancing)

Calculation:

  1. eper = (1.0 × 9549) / 6000 = 1.59 μm
  2. Uper = 1.59 × 5 = 7.95 g·mm

Conclusion: for high-speed precision spindles the requirements are very strict — the permissible specific unbalance (eper) is about 25 times smaller than for fans.

Practical application: if the final balancing report shows that the residual unbalance is within the calculated ISO tolerance, the work is deemed to have been carried out to a high standard. This is an objective, legally meaningful criterion.

In addition to ISO 21940-11 (the unbalance tolerance), there is ISO 20816-3:2022 — which superseded the now-withdrawn ISO 10816-3 — governing the permissible vibration levels of equipment measured on the bearing housings. It classifies machines into groups and 2 foundation types (rigid/flexible).

Table: vibration evaluation zone boundaries — ISO 10816-3:2009, Annex A (mm/s RMS)
Machine group Support Zone boundaries (mm/s)
A/B
Good		 B/C
Acceptable		 C/D
Alarm
Group 1 (Large machines)
P > 300 kW; electrical machines with shaft height H ≥ 315 mm		Rigid2.34.57.1
Flexible3.57.111.0
Group 2 (Medium machines)
15 kW < P ≤ 300 kW; electrical machines with 160 mm ≤ H < 315 mm		Rigid1.42.84.5
Flexible2.34.57.1

Note: the values above are those of ISO 10816-3:2009, Annex A. ISO 20816-3:2022 now supersedes that part. Pick the row that matches your machine: a limit quoted without a group and a support type is meaningless — ISO 20816-1:2016 gives the A/B boundary alone a spread of 0.71 to 4.5 mm/s across machine types.

Decoding the condition zones:

Zone A: Good

The condition of new equipment. No action is needed.

Zone B: Acceptable

Unrestricted operation is permitted. Monitoring is recommended.

Zone C: Temporarily acceptable

The equipment needs diagnostics to find and eliminate the causes of vibration.

Zone D: Unacceptable (Alarm)

The vibration may cause damage. Stopping the machine for repair is strongly recommended.

Critical vibration levels:

  • Crossing the C/D boundary of your machine group (4.5 mm/s for medium machines, 7.1 mm/s for large machines on rigid foundations — see the table above) puts the machine in zone D: stop it for diagnostics to prevent destruction of the bearings and casing
  • Running well beyond that boundary can lead to fatigue cracking of casing welds and rapid failure of components.

The two standards complement each other: ISO 21940-11 defines the target balancing quality, while ISO 20816-3 assesses the machine's actual vibration condition.

Conclusion

ISO 21940-11 is not merely a formal requirement but a practical tool for assuring balancing quality. It lets you:

  • Objectively assess the quality of the work carried out
  • Choose an economically justified level of accuracy
  • Protect the interests of both the customer and the contractor
  • Provide documented proof of quality

Modern balancing instruments such as the Balanset-1A have a built-in tolerance calculator to ISO 1940-1 that automatically computes the target values and compares the results achieved against them.
