Balanset-1A: Portable Dynamic Balancing Machine
The professional solution for field balancing in its own bearings. Reduce vibrations, increase the service life of your machines, and lower operating costs.
1,975 €
Complete set, ready to use
Product Overview
The Balanset-1A is a two-channel device for balancing and vibration analysis, suitable for a wide range of rotor types such as crushers, blowers, mulchers, combine harvester augers, shafts, centrifuges, turbines, and many others. It offers high precision and efficient balancing through a series of advanced features and technologies.
Simplicity & Speed
Designed for quick and straightforward use by service and maintenance personnel directly on-site. No disassembly of the equipment required.
Cost-Effectiveness
An affordable investment that quickly pays for itself by avoiding expensive repairs and production downtime.
All-in-One Solution
The set includes everything you need to start working immediately. No hidden costs or necessary additional purchases.
Comprehensive Features
Vibrometer Mode
- Tachometer: Accurately measures the rotational speed (RPM).
- Phase: Determines the phase angle of the vibration signal.
- 1x Vibration: Analyzes the fundamental frequency component.
- FFT Spectrum: Provides a detailed frequency spectrum analysis.
- Overall Vibration: Monitors the total vibration level.
- Waveform: Displays the vibration signal waveform.
- Two-channel acquisition: Measures both channels simultaneously.
- Measurement Log: Saves measurement data for further analysis.
Balancing Mode
- One or two-plane balancing (static/dynamic).
- Polar Diagram: Visualizes the unbalance for accurate weight placement.
- Tolerance Calculator (ISO 1940): Calculates permissible residual unbalance by G grade.
- Grinding Wheel Balancing: Special mode with 3 counterweights.
- Trim Balancing: Fine-tunes the result with additional correction runs.
- Split Weight: Divides the correction weight between fixed positions (e.g. blades).
- Drill Calculation: Converts the correction weight into material removal by drilling.
- Index Balancing: Calculates and eliminates mandrel eccentricity.
- Recalculation between correction planes; manual data entry.
- Automatic check of the trial weight validity (with a prompt).
- Option to remove or keep the trial weights.
- Restore last session.
Additional Capabilities
- Archive: Stores an unlimited archive of past balancing sessions.
- Reports: Generates detailed PDF reports.
- Rebalancing with saved influence coefficients — no repeated trial runs.
- Support for metric and imperial systems.
- Runs on Windows; also usable as the measuring system of pre-resonance balancing machines.
Technical Specifications
| Number of measurement channels (vibration) | 2 |
| Number of measurement channels (speed) | 1 |
| Range of RMS vibration velocity measurement (1x vibration) | 0.02–80 mm/s |
| Frequency range of RMS vibration velocity measurement | 5–1000 Hz |
| Number of correction planes | 1 or 2 |
| Rotational speed measurement range | 100–100,000 RPM |
| Vibration phase measurement range | 0–360° |
| Measurement error (phase angle) | ±1 degree |
| Power supply | via USB cable from the connected computer |
| Dimensions (in transport case) | 39 × 33 × 13 cm |
| Weight (complete kit) | under 5 kg |
| Vibration sensor dimensions | max 25 × 25 × 20 mm |
| Vibration sensor weight | max 0.04 kg |
| Operating temperature range | +5 to +50 °C |
| Relative humidity | under 85% (non-condensing) |

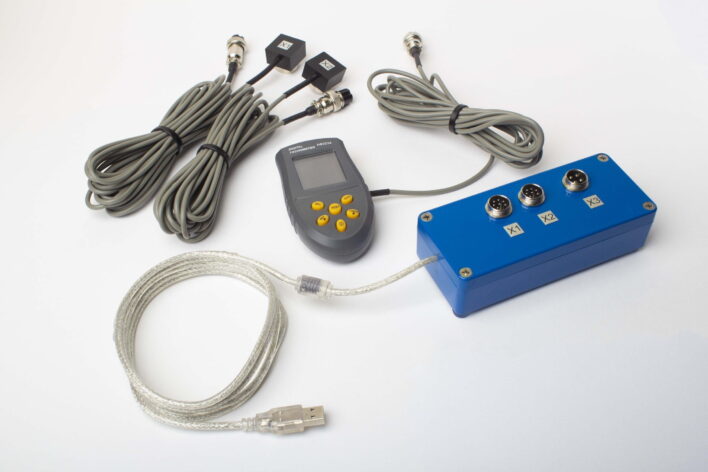

Complete Kit Contents
- Balanset-1A USB measuring unit (2 channels; preamplifiers, integrators and ADC module)
- 2 single-axis vibration sensors (accelerometers, cable length 4m, optional 10m)
- Laser phase-angle sensor (digital tachometer, distance 50-500mm, cable length 4m)
- Reflective tape
- User manual
- Magnetic stand (for the laser tachometer)
- Electronic scale
- Balancing software (on USB flash drive)
- Rugged transport case
A Windows laptop or PC is required to run the software; it is optional and not included in the basic kit.
